Product Dimensions 31.9"h x 27"w x 30"d

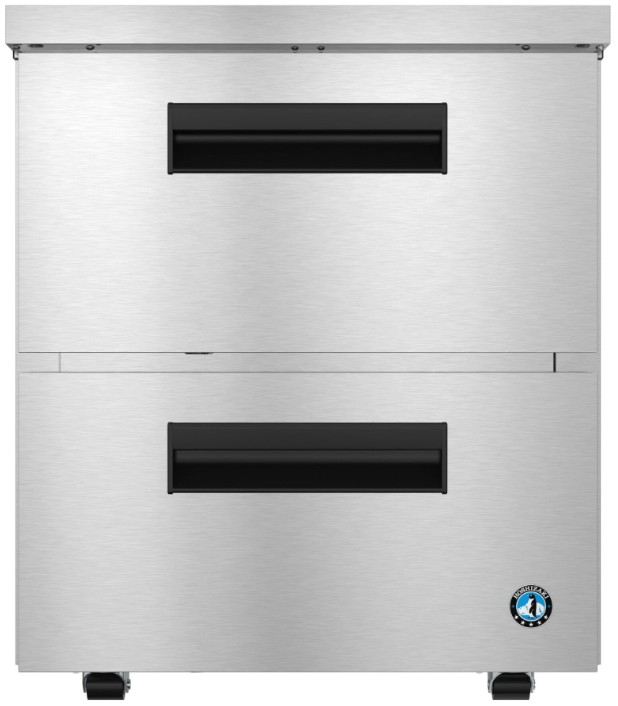

The UR27B-LPD2 Steelheart Series Undercounter single section low profile refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions with a net capacity of 6.21 cubic feet this efficient undercounter low profile refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount door handle
(2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
Insulated with 2″ CFC free, foamed in place polyurethane
Drawers Capacity: Top: (1) 12″ x 20″ full size pan and (2) 1/4 size pans. Bottom: (1) full size pan (pans by others)
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 2.25″ Stem Casters (2 with brakes) are standard
At only 31.9″ tall, Low Profile Refrigerator is ADA compliant
Optional Kits: 4″ or 6″ casters, over shelves (single or double), stainless steel back, drawer divider bars (vertical or horizontal)
Nominal Compres. of 798 BTU/hr at 1/6 HP
115v/60/1, 10 ft. cord and plug
General Specs | |
| Width (in.) | 27 |
| Depth (in.) | 30 |
| Height (in.) | 31.9 |
| Color | Stainless Steel |
| Handle Color | Black |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Collection Code | UR27B |
| Ice Maker | No |
| Depth Type | Counter Depth |
| Color Finish Name | Stainless Steel |
| ENERGY STAR Certified | No |
| Installation Type | Freestanding |
| ADA Compliant | Yes |
| Smart Compatible | No |
| Shipping Depth (in.) | 31.5 |
| Shipping Width (in.) | 34 |
| Shipping Height (in.) | 35.5 |
| Voltage | 104-126 |
| Amp | 3 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Overall Height (in.) | 31.9 |
| Garage Ready | No |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45° to 100°F |
| Control Setpoint Range | 32° to 52°F |
| Energy Consumption (kWh/day) @NSF | 0.65 |
| Heat Rejection (BTU/Hr.) @NSF | 152 |
| Approximate Nominal Compres. BTU/HR (HP) | 798(1/6HP) |
| Refrigerant / Charge Amount (oz) | R290 (2.3 oz) |
| Interior Storage Capacity (CF) (AHAM) | 6.21 ft3 |
| Drawer Opening Width x Height | 22.75” x 23” |
| Depth with Drawer Fully Open (including 1” bumper) | 51” |
