Product Dimensions 7.5"h x 2"w x 7.5"d

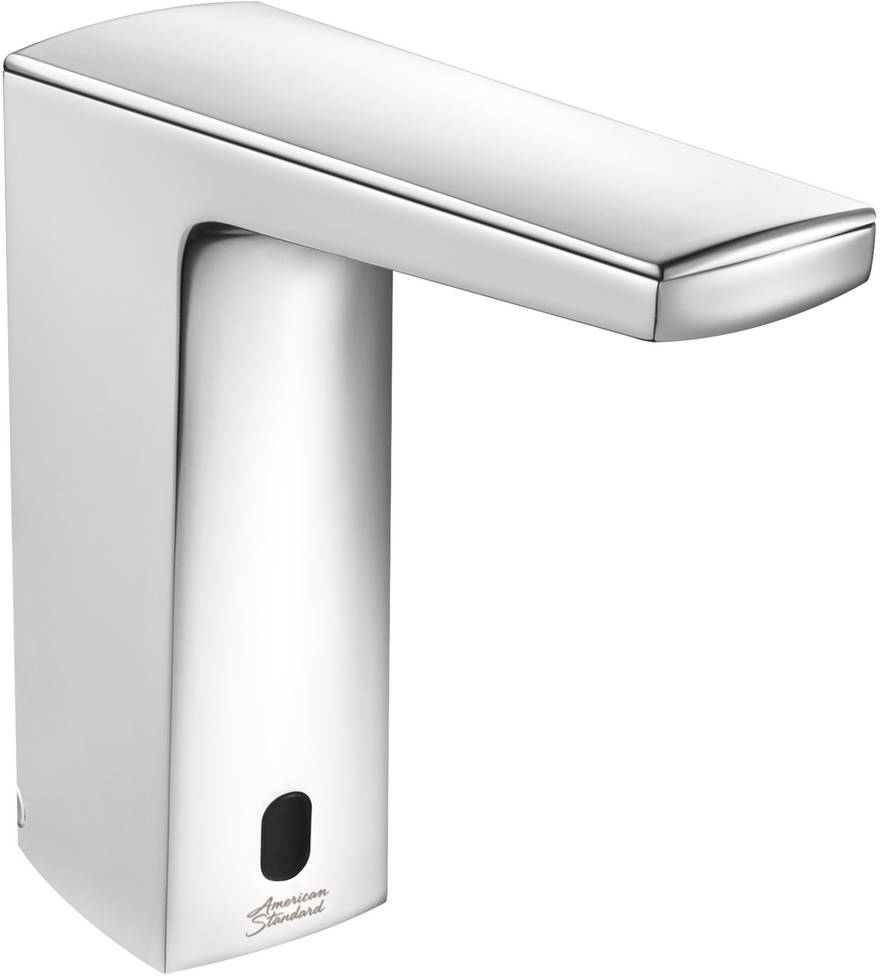

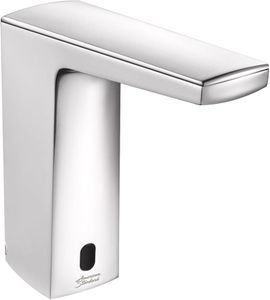

Sleek and streamlined, the Paradigm Selectronic Integrated Faucet from American Standard takes a cue from modern design. It features the patented SmarTherm® Safety-Shut Off which is ASSE 1070 certified and automatically protects the user from scalding. The simple integrated design, with all electronics in the spout, is engineered for easy installation and maintenance to save time and money. It eliminates the control box and provides for a clean, clutter-free under-deck space. Available in Chrome and Brushed Nickel.Read More
View Options
0.5 gpm pressure compensating, vandal-resistant multi-laminar spray
SmarTherm® Safety Shut-Off: Integral thermostatic hot water temperature limiter meets ASSE 1070 without a separate thermostatic mixing valve
Above-Deck Mixing: Allows user to manually adjust temperature. Adjustable hot limit stop. Red & blue indicators.
Removable Mixing Handle: Installer can set temperature and remove handle to prevent user adjustment. Cover plug included.
Dual Inlets: For hot and cold water. Check valves included to prevent cross flow. Filter assemblies protect the solenoid valve from debris.
Hygienic, touch-free operation
Clean, Integrated Design: All electronics contained in faucet spout. No control box below deck.
Easy Installation & Maintenance: Faucet installs from the top. All serviceable parts are easily accessible.
Flexible Selectronic® Platform with programmable sensor and interchangeable power supplies.
Power kit must be purchased separately
Self-Cleaning Solenoid Reduces Maintenance: Integral wiper spring prevents clogging and run-on. Silicon seals.
Adjustable Range: Detection zone can be adjusted manually or with optional remote control.
Fail-Safe: Faucet automatically shuts off upon loss of power or dead battery. No reset required.
Lead-Free: Faucet contains = 0.25% total lead content by weighted average.
Auto Purge: Periodically purges stagnant water from faucet and supply lines. Timing is adjustable with optional remote control.
Safety Timer: Turns water off if the sensor is blocked for 55 seconds. Timing is adjustable with optional remote control.
General Specs | |
| Height (in.) | 7.5 |
| Faucet Type | Bathroom Sink |
| Max Flow Rate | 0.5 |
| Number Of Faucet Handles | 1 |
| Maximum Pressure (psi) | 120 |
| Width (in.) | 2 |
| Color/Finish Name | Polished Chrome |
| Manufacturer Warranty | Limited Lifetime |
| Depth (in.) | 7.5 |
| Collection | Paradigm™ Selectronic® |
| Handle Style | Lever |
| Plumbing Installation Type | Deck Mounted |
| Flow Rate | 0.5 |
| Spout Reach | 5.5 |
| Number Of Faucet Holes | 1 |
| Drain Included | No |
| Spout Height | 6.63 |
| Color | Chrome |
| Cec Compliant | No |
